Features

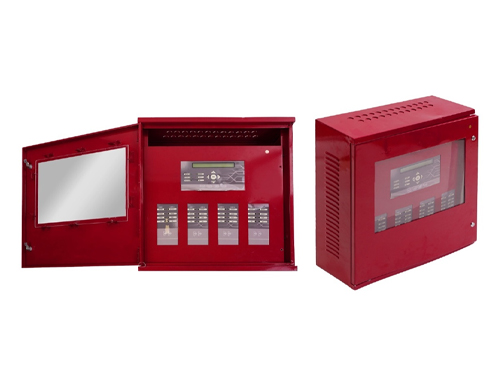

Advanced microprocessor based DIGITAL ADDRESSABLE fire alarm control panel.
- 2 Loop digitally addressable zones.
- Each zone supports 99 addressable devices.
- Supports addressable MCP.
- 32 character field programmable point text for each sensor.
- 40 x 2 Character LCD display.
- Stand Alone models.
- Common sounder circuit.
- Field programming through ATX keyboard.
- All zone wiring circuits are supervised.
- Operates on 220V 50Hz AC mains power.
- 24V DC stand-by supply.
- Loop isolation facility.
- Loop wise fire, fault & isolation LED indication.
Specification
- Primary Power: 220VAC, 60/50Hz, 3Amps.
- Standby Power: 24V DC (2 Nos of 12V, 7.2Ah (Max.) & Built-in for 7.2Ah Sealed Lead Acid Battery)
- Operating Temperature: 0 - 49°C (32 - 120°F)
- Relative Humidity: 93 ± 2% RH non-condensing
- Charging Voltage: 26V ± 2% Nominal Charging Current – 1.2A (Max.)
- All zone are Class B Style B/C operation (Programmable). Normal Operating Voltage: 18 - 24 VDC.
- Alarm Current: 15 – 30mA.
- Loop Resistance: 180 ohms Maximum. End-Of-Line Resistor: 2K7, 1/2 watt.
- Standby Current: 7mA (2mA for Detectors)
- Class B, Style - Y wiring.
- Common Two Form – C Relays.
- Relay contact Rating: 2Amps @ 30 VDC, 0.5Amps @ 125VAC (Resistive only), Power Factor: 1.0
- Programmable Input circuits.
- No. of Zone: 2 Loop.
- Normal Operating Voltage: 24 VDC.
- Short Circuit Current: 3mA.
- Maximum Loop Resistance: 180 ohms Maximum.
- Dimensions: 382mm x 382mm x 110mm.
- Weight: 6.3kg without battery.
- Maximum No. of Devices per Zone: 99 devices in any combination (MCP, Detectors, Modules).
