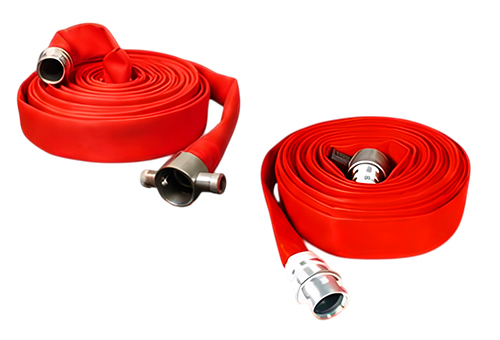

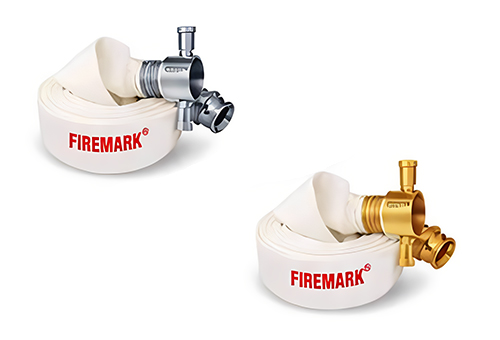

Controlled Percolating Flexible Delivery Hose
FEATURES
Compact, Flexible & Light weight, Abrasion Resistant, Ability to withstand high operating & back Pressure.
Conforming Specification: IS: 636/1988 Type-A
Application: This RRL Hose used for water delivery purpose in Fire-Fighting & Civil Engineering Applications etc.
Jacket: Circular woven jacket made from a special blend of cotton & synthetic yarn with high abrasion and heat resistance Jacket is also treated with suitable rot proofing agent.
Rubber Lining: A rubber inner lining with suitable rubber compound which gives flexibility, durability & better resistance.
Standard Length: 7.5 Mtrs, 15 Mtrs, 22.5 Mtrs & 30 Mtrs.
Enquiry
FEATURES
Compact, Flexible & Light weight, Abrasion Resistant, Ability to withstand high operating & back Pressure.
Conforming Specification: IS: 636/1988
Application: This RRL Hose used for water delivery purpose in Fire-Fighting & Civil Engineering Applications etc.
Jacket: Circular woven jacket made froma special blend of cotton & synthetic yarn with high abrasion and heat resistance Jacket is also treated with suitable rat repellant agent.
Runner Lining: A rubber inner lining with suitable rubber compound which gives flexibility, durability & better resistance.
Standard Length: 15 Mtrs & 30 Mtrs.

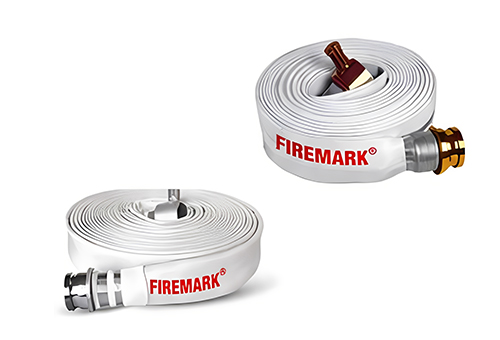

EnquiryControlled Percolating Hose
Size: Inlet: 1" Threaded Inlet Connection
Application: This hose used for water delivery purpose in fire-fighting, irrigation & floor washing etc.
Jacket: Circular woven jacket made from a special synthetic yarn.
Rubber Lining: An ultra thin layer of rubber lining with suitable rubber compound which ensure controlled percolation.
Standard Length: 7.5 Mtrs, 15 Mtrs, 22.5 Mtrs & 30 Mtrs.
End Connection: As per customer requirements
Enquiry
Features
ICompact, Flexible & Light weight, Low friction loss, Abrasion resistance Ability to withstand high operating & back pressure.
| DIAMETER MM | BURSTING PRESSURE KGF/CM² | TEST PROOF PRESSURE KGF/CM | Coil DIAMETER (30 MTR) Cm |
|---|---|---|---|
| 38 | 35.7 | 21.4 | 44-45 |
| 50 | 35.7 | 21.4 | 44-45 |
| 63 | 35.7 | 21.4 | 44-45 |
| 63 | 35.7 | 21.4 | 44-45 |

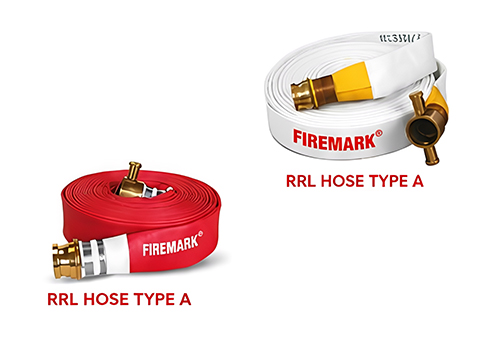

EXTRA COAT RRL HOSE (REINFORCED RUBBER LINED HOSE)
Non Percolating Flexible Delivery Hose
TECHNICAL SPECIFICATIONS
Hose: RRL Hose with Elastomeric Coating conforming to As per IS: 636/1988 Type-A
Application: This RRL Hose is used for water delivery purpose in Fire Fighting, Oil & Power Sector, Industrial Plant, & Sailing Vessels.
Enquiry
