Addressable Range

Sounder Cum Strobe

Product Overview

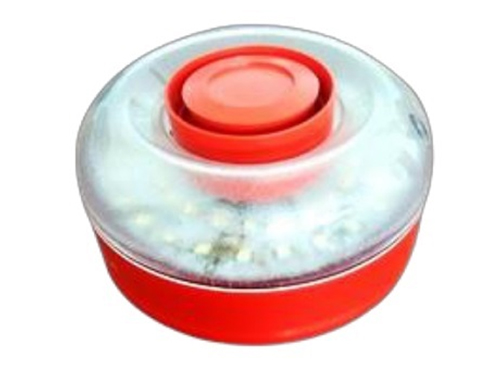

The MS-HS02 Sounder Cum Strobe is designed to simplify installation while providing both primary and secondary notification for fire and security applications. It is ideal for locations where compact notification devices are required. The unit can be flush-mounted or ceiling-mounted. The strobe can be wired as either a primary or secondary signaling notification appliance, flashing at 1 Hz across the entire operating voltage range. The strobe light utilizes a Xenon flash tube for reliable visual signaling.

Enquiry
Addressable Control Interface

Electrical Specifications

Material ABS Plastic
Input Voltage 24 VDC (15–30 V)
Current 140 mA @ 24 V
Relative Humidity: 93 ± 2% @ 32°C
Operating Temperature 0°C to 50°C
Sound Level 80 dB ± 5 dB @ 30 cm
Tone Type Fire Engine
Size 106 × 106 × 55 mm
Diameter 106 mm
Weight with Base 160 g

Features

  • Easy to install
  • Operates on 24 VDC
  • Sound output of 80 dB at 30 cm
  • Low current consumption
  • Suitable for ceiling and flush wall mounting

Ordering Information

Model Description
MS-HS02 Sounder Cum Strobe
