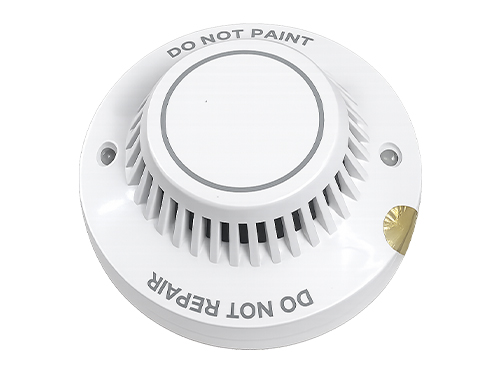

Addressable Optical Smoke Detector
This Addressable Smoke Detector combines proven design and reliable performance with unique features that benefit both installers and end users. The MICRO SENSORS LLP Smoke Detector operates using the light scatter principle and is ideal for applications where slow-burning or smouldering fires are likely to occur. The detector continuously monitors the environment for contamination of clean air by smoke particles.
Technical Parameters
- Voltage Range: 16–32 VDC
- Alarm Current: 10–100 mA
- Quiescent Current: 60 µA @ 24 VDC
- Operating Temperature: 0°C to +49°C
- Humidity: < 95% RH
- Coverage Area: 3 sq. meters
- 2-Wire Class B Type
- Photoelectric Sensor
- Product Size: 106 × 106 × 52 mm

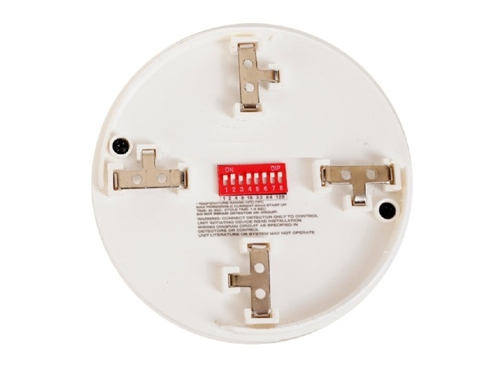

- Addressing Through 8-Way DIP Switch
- Weight: 160 g with Base
Features
- Dual LED design provides 360° viewing.
- Remote indicator output available.
- Alarm flag for fast alarm reporting.
- Electronics-free base.
- Responds effectively to slow-burning and smouldering fires.
- Easy installation with removable innovative sensing chamber for simple maintenance.
- Well suited for bedrooms and escape routes.
- Soft addressing.
- Real-time smoke information for faster response.
- Durable ABS body.
