Overview

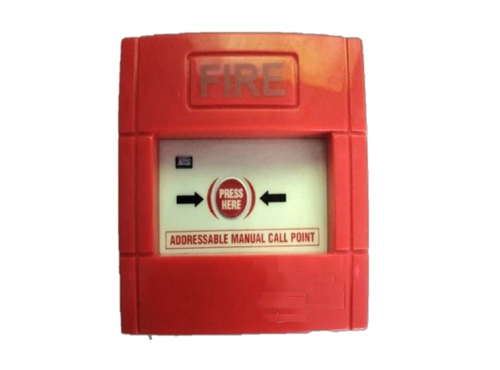

This Addressable Manual Call Point is designed for instant manual actuation of a fire alarm system. The advantage of this unit is its large-size design, providing clear visibility along with dual LED indication for enhanced status monitoring and operation.
Specifications
- MCP Power Consumption: 12 mA
- Working Humidity: 0–95% RH (Non-Condensing)
- Operating Temperature Range: 0°C to +49°C
- MCP Weight: 110 g
- Addressing Through 8-Way DIP Switch
- 2-Wire Class B Type
- Low Standby Current
- Operates on 24 VDC Loop Voltage
- Suitable for Flush and Surface Mounting

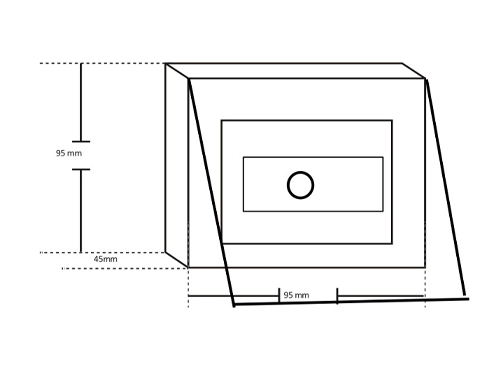

- Dimensions: 95 × 95 × 45 mm
Features
- Dual LED design provides 360° viewing.
- Remote indicator output available.
- Alarm flag for fast alarm reporting.
- Electronics-free base.
- Responds well to slow-burning and smouldering fires.
- Easy installation with removable innovative sensing chamber for simple maintenance.
- Well suited for bedrooms and escape routes.
- Soft addressing.
- Real-time heat information for faster response.
- Durable ABS body.
