Home Addressable Glyptic Firemark Control Interface

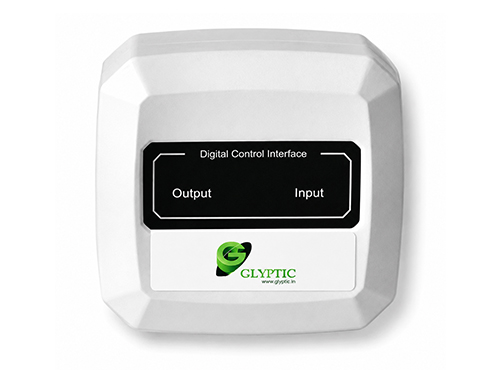

GL-CM-L Addressable Control Interface

Features

  • Addressable Input and output module
  • Easy Installation
  • Output relay capacity: 30VDC/1A
  • Input circuit line detection with EOL resistor
  • LPCB approved to EN 54-18:2005
FIREMARK®
LPCB
EN-54 Certified
CE
LPCB 1174j/01
2831-CPR-F2178
Addressable Control Interface
Enquiry

Description

GL-CM-L Digital Control Interface is designed for linkage remote control of fire alarm system and fire protection system. Such as Fire extinguishing systems, water systems, smoke control systems, elevators, etc.

It can transmit action or stop signals to remote devices.

The input line has open circuit detection function with EOL resistor. It can provide a fault signal to FACP when a open circuit occurs.

Technical data

Operating Voltage: 16-28V(Modulated-pulse)
Standby Current: ≤0.5mA
Alarm Current: ≤1.0mA
Wiring: Two-wire ( non-polarized )
Temperature range: -10°C ~ 50°C
Humidity: ≤95%RH, ( 40±2°C ) No condensation
Remote Control Output Indication: Output LED Emitting
Signal inputting Indication: Input LED Emitting
IP Rating: 32
Installation Base: VB-6618
Weight: Module 65g, Base 58g

Note

  1. RVS-2*1.0 mm2 or1.5 mm2 wire for Loop, laid through metal tube (cable sink) or PVC tube.
  2. 1,2 Should connecting with fire alarm system detection loop (Non-polarized).
  3. It can only be connected to GLYPTIC addressable fire alarm control panel.
  4. Detector Base GL-DB101.
  5. GL-DPU-C Digital Programmer for addressing.
  6. The sensitivity mode can be set on GL-P256 fire alarm control panel.

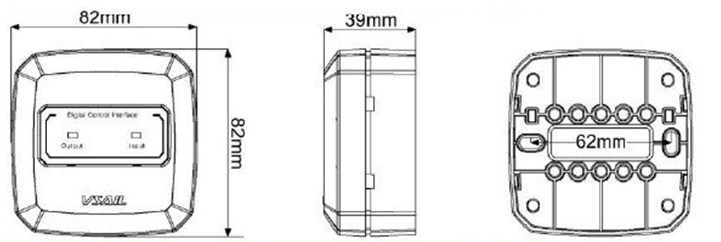

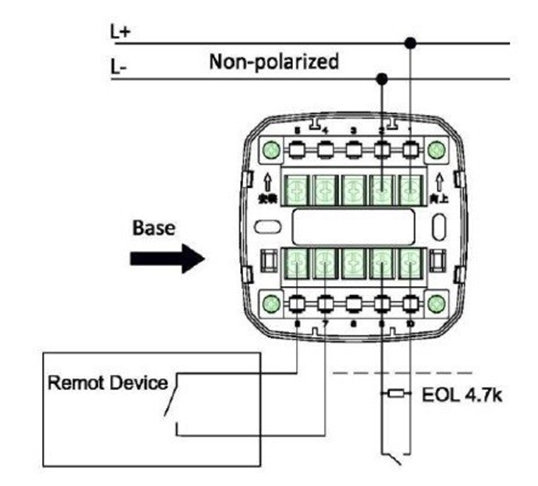

Dimension & Wiring
