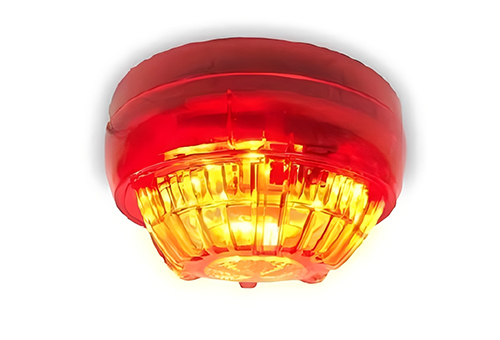

Intelligent Sounder Beacon Designed for High-Volume Evacuations.
Our Glyptic Addressable Sounder Beacon provides acoustic and visual warnings. Commanded directly by digital loops, it flashes high-intensity red LEDs while sounding high-decibel tones.
- Integrated Line Isolator: Built-in isolator board safeguards loops from short-circuit faults.
- High-intensity flash: Visual strobe alerts hearing-impaired occupants.
- Low power consumption: Optimized piezo electronics reduce loop load.
- Digital addressing: Decimal code dial switches assign loop addresses.
Audible Visual Notification Protection
Addressable sounders combine acoustic siren alert warning horns with high-power flashing warning lights. Commanded directly by digital loops, they synch sound cycles during emergency evacuations.
| Operating Voltage Range | 16V DC to 28V DC (Loop powered) |
|---|---|
| Quiescent Current | ≤ 280 µA @ 24V DC |
| Alarm Active Current | ≤ 9.5 mA @ 24V DC (Siren and strobe active) |
| Sound Pressure Level | 85 dB to 102 dB @ 1 Meter (adjustable tones) |
| Integrated Line Isolator | Yes, trips at 1.5A short-circuit current threshold |
| Dimensions | 110mm Diameter x 90mm Height (with base) |
Construction Quality
Molded in UV-stabilized red polycarbonate with fire-retardant attributes. Low-profile aesthetics, gold-plated contacts on bases, and built-in terminal blocks.
