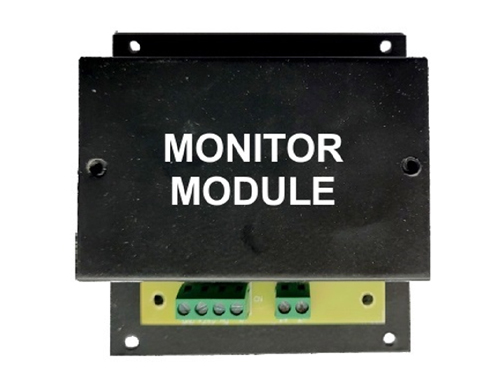

Monitor Module – MS-MM04
| Operating Voltage | 24 VDC Nominal |
| Alarm Current | 2.7 mA Max. (Latched) |
| Standby Current | 0.7 mA |
| End of Line Resistor | 47 kΩ |
| Loop Impedance | 40 Ω |
| IDC Wiring Resistance | 100 Ω Max |
| IDC Voltage | 8 V Max |
| Operating Temperature | 0°C to 49°C |
| Storage Temperature | 0°C to 60°C |
| Humidity | Non-Condensing at 32 ±2°C / 90 ±3°F |

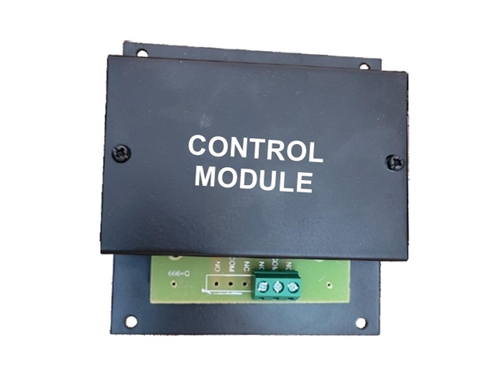

Control Module – MS-CM06
| Operating Voltage | 24 VDC |
| Operating Temperature | 0°C to 49°C (32°F to 120°F) |
| Humidity | 93%–95% RH (Non-Condensing) |
| Relay Type | Form-C Relay |
| Relay Contact Rating | 2A @ 30 VDC |

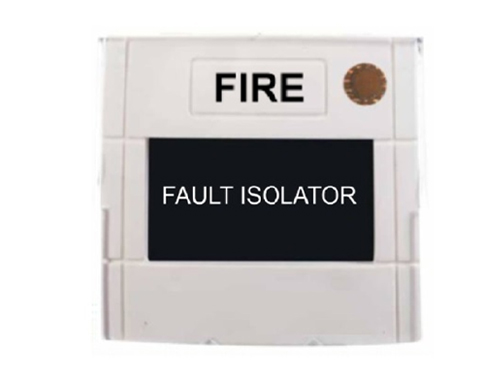

Fault Isolator Module – MS-FI05
| Operating Voltage | 24 VDC |
| Operating Temperature | 0°C to 49°C (32°F to 120°F) |
| Humidity | 93%–95% RH (Non-Condensing) |
| Maximum Current (Through Loop) | 1 Amp Continuous |
| Maximum Supply Voltage | 28 VDC |
