Performance Test
Hydrostatic Test: Tested at 21 Kgf/cm2
Working Pressur: 7kgf/cm2
Finish: Natural Polished
Hologram: Sticker Stuck on Nozzle
EnquiryTechnical Specification
Size of Branch Pip: 63 mm
Size of Nozzles: 6mm, 12 mm, 15 mm, 20 mm and 25mm
Material: Gun metal / Stainless / Aluminium Alloy
Conforming Specificatio: IS 903:1993
| TYPE OF MATERIAL | STAINLESS STEEL | GUN METAL | ALUMINUM |
|---|---|---|---|
| BODY, ASSEMBLY | STAINLESS STEEL IS: 3444 | LBT IS: 318 | IS 617 |
| RUBBER WASHER | IS 937 Type B | IS 937 Type B | IS 937 Type A |

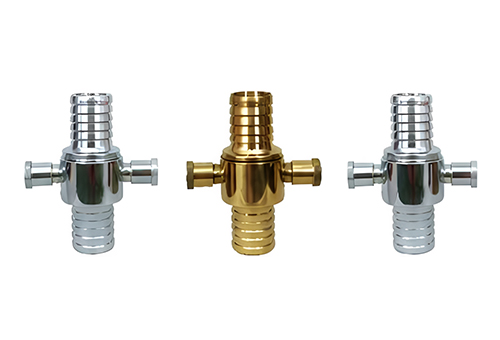

AUTOMATIC SPRINKLER INSTANTANEOUS MALE / FEMALE TYPE COUPLING
Performance Test
Hydrostatic Test: Tested at 21 Kgf/cm2
Finish: Natural Polished
Hologram: Sticker Stuck on Nozzle
EnquiryTechnical Specification
Size: 63 mm
Material: Stainless Steel/Gun Metal/ Aluminum Alloy
Conforming Specification: IS 903:1993

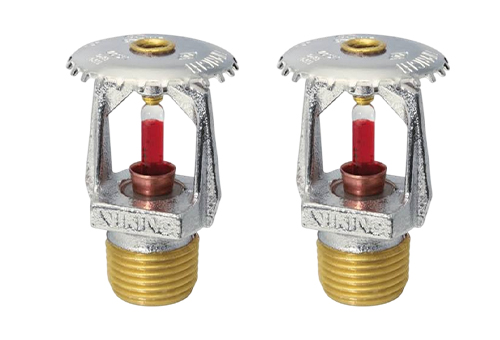

| TEMPERATURE RATING | 155° F/68° C |
| GLASS BULB COLOUR | RED |
| THREAD SIZE | NPT 1/2" ORR 1/2" |
| MAX. SERVICE PRESSURE | 175 PSI |
| GLASS BULB DIAMETERS (MM) | 05 |
| TYPE OF MATERIAL | STAINLESS STEEL | GUN METAL | ALUMINUM |
|---|---|---|---|
| BODY, ASSEMBLY | STAINLESS STEEL IS: 3444 | LBT IS: 318 | IS 617 |
| RUBBER WASHER | IS 937 Type B | IS 937 Type B | IS 937 Type A |
| SPRING | STAINLESS STEEL IS: 6528 | PHOSPHORUS WIRE IS: 7608 | STAINLESS STEEL IS: 6528 |
