Feature
- Addressable Manual Call Point
- Advanced embedded Micro Controller Unit (MCU)
- The button can be pressed in case of fire
- Reset by a special key
- LED indication for operation status
- Manual addressing via programmer
- Indoor use
- LPCB approved to EN 54-11
Description

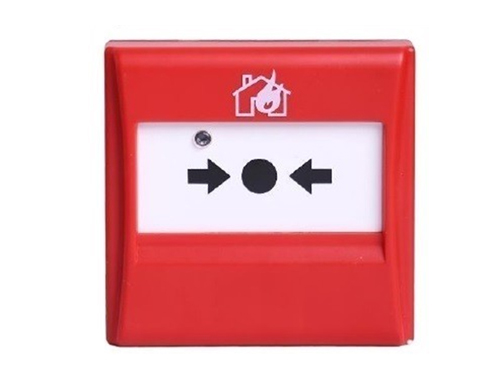

The GL-MCP Addressable Manual Call Points enable the immediate manual activation of a fire alarm when a fire is detected by humans.
It has a high level of water and dust proof, making it suitable for various of applications They are suitable for use in hotels, restaurants, machine rooms, banks, shopping malls, warehouses, museums, libraries and office buildings,etc.
Technical data
| Operating Voltage: | 16-28V(Modulated-pulse) |
| Standby Current: | ≤0.5mA |
| Alarm Current: | ≤1.0 mA |
| Wiring: | Two-wire ( non-polarized ) |
| Temperature range: | -10°C ~ 50°C |
| Humidity: | ≤95%RH, ( 40±2°C ) No condensation |
| LED Alarm Indication: | Red light emitting |
| LED Polling Indication: | Red light flashing |
| Call Point type: | Type A: Direct operation (single action and resettable). |
| Call Point principle: | Operat by switch |
| IP Rating: | IP43 |
| Weight: | 156g |

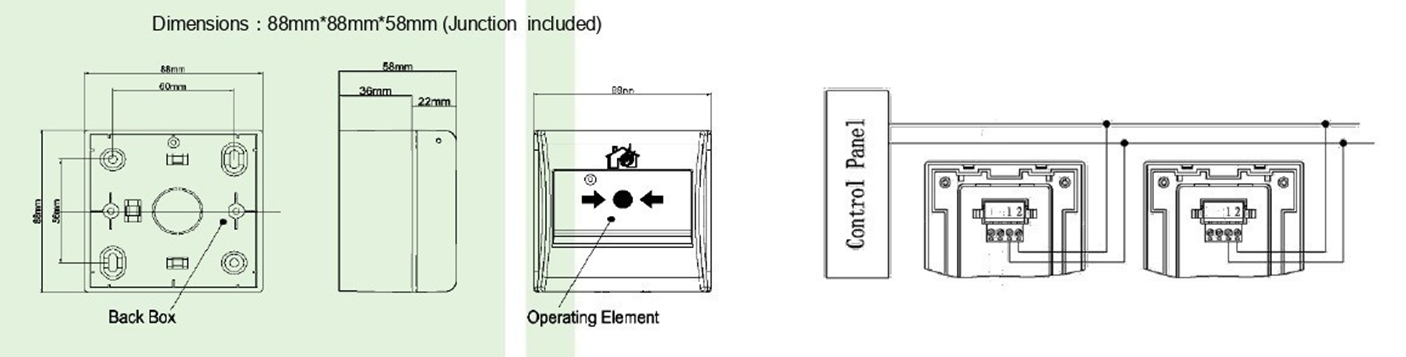

Dimension & Wiring
Note
- RVS-2*1.0 mm2 or1.5 mm2 wire for Loop, laid through metal tube (cable sink) or PVC tube.
- 1,2 Should connecting with fire alarm system detection loop (Non-polarized).
- It can only be connected to VSAIL addressable fire alarm control panel.
- GL-DPU-C Digital Programmer for addressing.
