Feature
- Addressable Heat Detector
- Advanced embedded Micro Controller Unit (MCU)
- Dual-response mode A1R/A2
- One LED for 360° visibility
- Manual addressing via programmer
- LPCB approved to EN54-5
- LPCB approved to EN54-7
Description

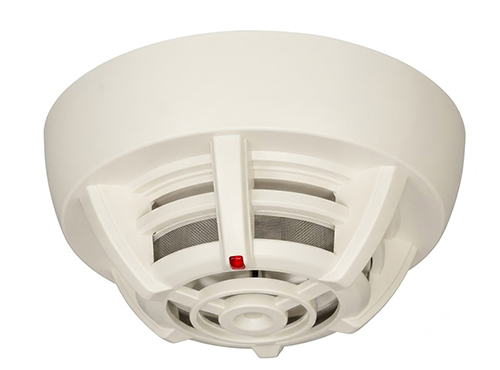

GL-HI101 is a digital heat detector designed for reliable fire detection in environments where smoke is
not present but dust, vapor, or high temperatures are common.
The A1R/A2 switchable setting will enhance the application range of the heat detector.
The detector is suitable for Indoor parking lots, Kitchens, Boiler rooms, Generator rooms, Drying
workshops.
Technical data
| Operating Voltage: | 16-28V(Modulated-pulse) |
| Standby Current: | ≤0.5mA |
| Alarm Current: | ≤1.0 mA |
| Wiring: | Two-wire (non-polarized ) |
| Temperature range: | -10°C ~ 50°C |
| Humidity: | ≤95%RH, ( 40±2°C ) No Condensation |
| LED Alarm Indication: | Red light emitting |
| LED Polling Indication: | Red light flashing |
| Respond Mode: | A1R/A2 |
| IP Rating: | IP32 |
| Weight: | Detector 63g, Base31g |

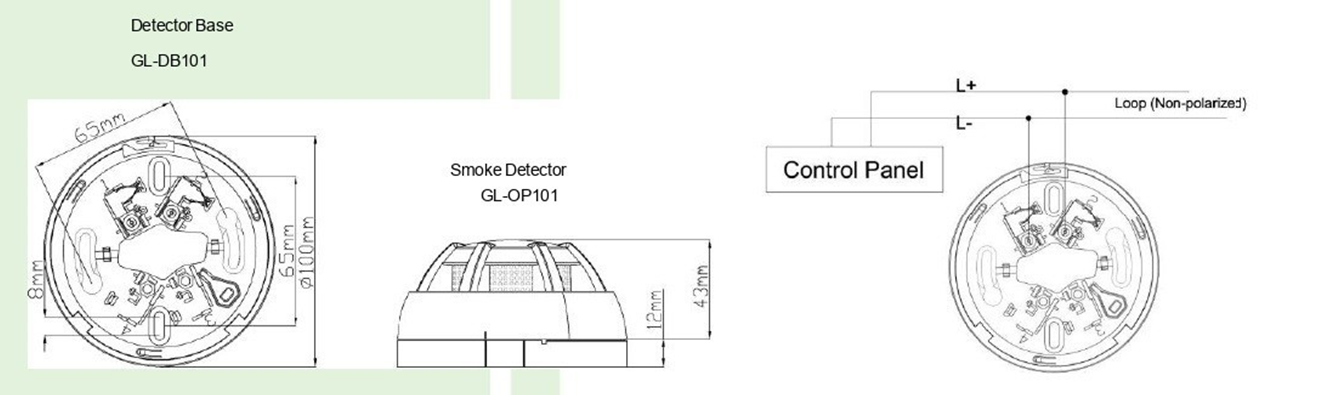

Dimension & Wiring
Note
- RVS-2*1.0 mm2 or1.5 mm2 wire for Loop, laid through metal tube (cable sink) or PVC tube.
- 1,2 Should connecting with fire alarm system detection loop (non-polarized).
- It can only be connected to VSAIL addressable fire alarm control panel.
- Detector Base GL-DB101.
- GL-DPU-C Digital Programmer for addressing.
- The sensitivity mode can be set on GLYPTIC fire alarm control panel.
