Feature
- Full info display from a remote location
- Installed at reception or supervised position of each floor
- Full message displayed same as the fire alarm panel
- Mini and attractive structure design
- Equipped with 4.3 inches touch screen for graphic display
- Occupy one address, able to view message from cross-loop
- USB port available for easy updating
- Multi languages ensure a user-friendly system
- 24VDC power supply required, but low power consumption
Description

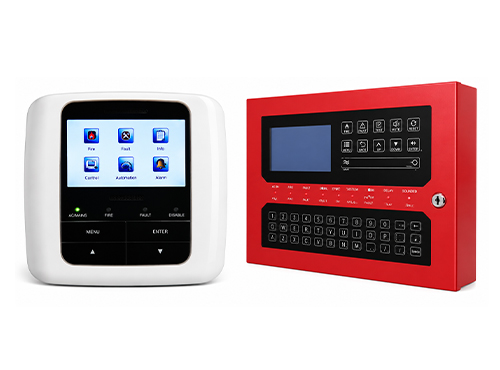

The GL-FT Repeater Panel is designed to display the full range of information available on the main control unit, including device addresses, locations, and other critical details, from a remote location. Acting as a mini station, it is typically installed at reception areas or supervised locations on each floor for convenient monitoring.
This panel features a 4.3-inch color LCD touchscreen housed in a compact and visually appealing structure. It occupies only one address in the loop but has the capability to view messages across multiple loops. Equipped with a USB port for software updates and support for multiple languages, the GL-FT ensures user-friendly operation and reliable performance, making it an excellent addition to modern fire alarm systems.
Technical Data
| Operating Voltage: | 16-28V(Modulated-pulse) |
| Power voltage: | 24VDC |
| Operating Current: | ≤40mA |
| Loop voltage: | 15VDC ~ 28VDC |
| Temperature range: | -10°C ~ 50°C |
| Humidity: | ≤95%RH, ( 40±2°C ) No Condensation |
| Address: | 0#—255# |
| Installation: | Wall-mount |
| Dimension: | 171×140×32mm |
| IP Rating: | IP32 |
| Weight: | Detector 63g, Base31g |

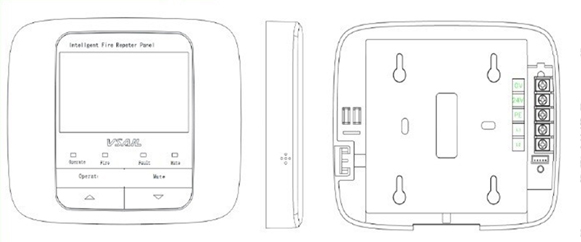

Dimension & Wiring
Note
Notes:
Fire (Red) : It lights when the fire repeater panel receives fire message from the intelligent fire alarm control panel.
Fault (Amber) : It lights when the fire repeater panel receives fault message from the intelligent fire alarm control panel.
Mute (Green) : It lights when the fire repeater panel receives silence message from the intelligent fire alarm control panel or from itself.
Operate (Green) : It flashes when the fire repeater panel receives data from the intelligent fire alarm control panel.
GL-PT Fire Repeater Panel has a touch screen and functional keys, those keys are shown below.
Mute : Pressing this key can silence the sound given by the fire repeater panel. It is used as Enter key in configure state.
▲ : Pressing this key can turn page up to view fire and fault messages from different addressable points under search screen.
▼ : Pressing this key can move the cursor to the right, or turn page down to view fire and fault messages from different addressable points under search screen
