Technical Specifications
Conforming to : IS:884/ 1958
Size: Inlet : 1" Threaded Inlet Connection
Type: Swinging 1800 Wall Mounting
Outlet: 3/4"/1" / 1-1/2 outlet connection For House to accommodate 30/36/40 Mtrs. Hoses
Performance Test
Hydrostatic Test: Tested at 21Kgf/cm2
Range & Water Flow rate test at 7Kgf/cm2
(A) Discharge: 24 LPM
(B) Range (Jet Length): 6 Mtr (Min)
Hologram:- Sticker Stuck on Wheel
Enquiry

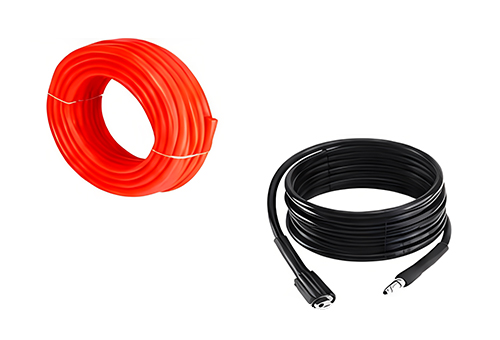

Thermoplastic Hose Pipe (TEXTILE REINFORCED) For Water
Technical Specifications
IS: 12585 - Type - 1 W.P.6 Kgf/cm2
IS: 12585 - Type - 2 W.P.10 Kgf/cm2
Construction:-
Lining: A flexible Thermoplastic Lining, Smooth in bore.
Reinforcement: A Natural or Synthetic Textile
Reinforcement: A flexible thermoplastics cover, which may have a smooth or fluted.
Nominal Bore (ID): 10.00 mm to 50.00 mm
Application: This Hose is used for water delivery & Fire Fighting purpose.

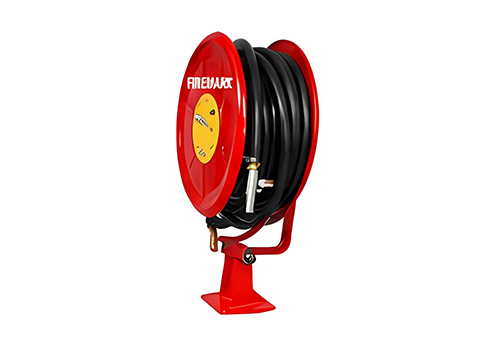

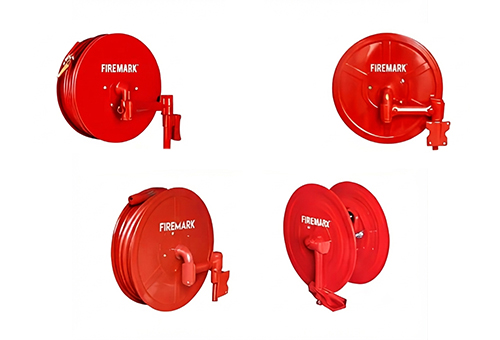

EnquirySWINGING TYPE WALL MOUNTED FIRST AID HOSE REEL DRUM
Technical Specifications
Conforming to: IS:884/1958
Size: Inlet: 1" Threaded Inlet Connection
Type: Swinging 180° Wall Mounting
Outlet: 3/4" /1" /1-1/2 outlet connection for House to accommodate 30/36/40 Mtrs. Hoses
Performance Test
Hydrostatic Test: Tested at 21 Kgf/cm2
Range & Water Flow rate test at 7Kgf/cm2
(A) Discharge: 24 LPM
(B) Range (Jet Length): 6 Mtr (Min)
Hologram:- Sticker Stuck on Wheel
Enquiry
| HUB SIDES & WALL BRACKET | M.S. SHEET OF IS: 513 |
| SWIVEL JOINT | LBT -2 OF IS: 318 |
| PIPE WITH FITTING | STEEL OF IS: 1239 PART 1 |
| NOZZLE | IS: 8090 |
| HOSE REEL TUBING | THERMOPLASTIC HOSE CONFIRMING TO IS: 12585 |
