Addressable Heat Detector
This Addressable Heat Detector combines proven design and reliable performance with unique features that benefit both installers and end users. This Addressable Heat Detector is an instrument that houses a thermistor sensor for monitoring heat levels within its surveillance area. Its unique feature is the ability to provide live temperature data to the control panel for real-time monitoring purposes.
Technical Parameters
- Voltage Range: 16–32 VDC
- Alarm Current: 10–100 mA
- Quiescent Current: 40 µA @ 24 VDC
- Operating Temperature: 0°C to +60°C
- Humidity: < 95% RH
- Coverage Area: 3 sq. meters
- 2-Wire Class B Type
- Photoelectric Sensor
- Product Size: 106 × 106 × 52 mm
- Addressing Through 8-Way DIP Switch
- Weight: 160 g with Base
Features
- Dual LED design provides 360° viewing.
- Remote indicator output available.
- Alarm flag for fast alarm reporting.

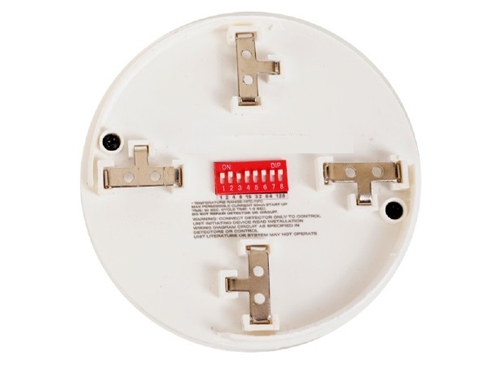

- Electronics-free base.
- Responds well to slow-burning and smouldering fires.
- Easy installation with removable innovative sensing chamber for simple maintenance.
- Well suited for bedrooms and escape routes.
- Soft addressing.
- Real-time heat information for faster response.
- Durable ABS body.
