(Type "A") ISI Marked
Technical SpecificationSize: 63 mm
Inlet: 80 mm NB Flanged
Outlet: Female Instantaneous
Comforming Specification: IS: 5290: 1993
Performance Test
Hydraulic Test: 21 Kgf/cm2
Water Tightness Test: 14 Kgf/cm2
Flow Test: 1800 LPM at 7 Kgf/cm2
Hand Wheel: Gray Cast Iron
Hologram: Sticker Stuck on Landing Value
Enquiry

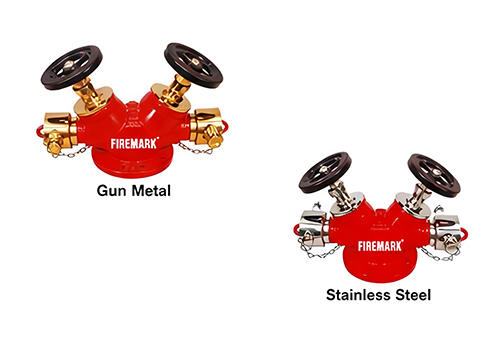

| TYPE OF MATERIAL | STAINLESS STEEL | GUN METAL | ALUMINUM |
|---|---|---|---|
| BODY, ASSEMBLY | STAINLESS STEEL IS: 3444 | LBT IS: 318 | IS 617 |
| ALVE SPINDLE | STAINLESS STEEL IS: 3444 | BRASS ROD IS: 319/320 | STAINLESS STEEL IS: 6603 |
| CAST IRON WHEEL | IS: 210 | IS: 210 | IS: 210 |
| RUBBER WASHER | IS 937 Type A | IS 937 Type A | IS 937 Type A |
| SPRING | STAINLESS STEEL IS: 6528 | Phosphorus | STAINLESS STEEL IS: 6528 |
| GLAND PACKING ASBESTOS THREAD | IS: 4687 | IS: 4687 (TYPE-3) | IS: 4687 (TYPE-3) |
INLET FBC / BREECHING

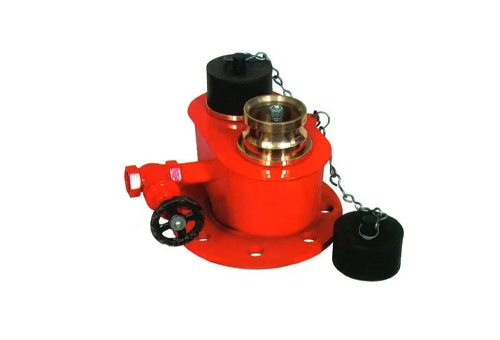

2 WAY INLET FBC BREECHING
| MODEL | 2 WAY INLET FBC BREECHING |
| SIZE | GUN METAL/S.S & CAST IRON BODY |
| TESTING | HYDRAULIC TEST: 21 KGF/CM2 |

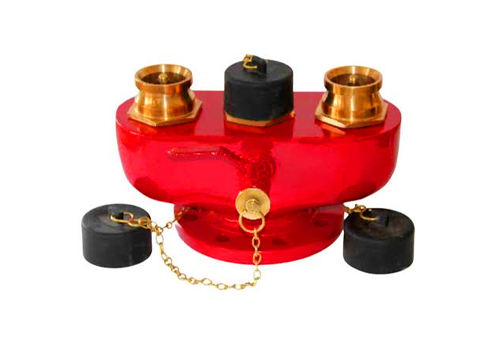

3 WAY INLET FBC BREECHING
| MODEL | 2 WAY INLET FBC BREECHING |
| SIZE | GUN METAL/S.S & CAST IRON BODY |
| TESTING | HYDRAULIC TEST: 21 KGF/CM2 |

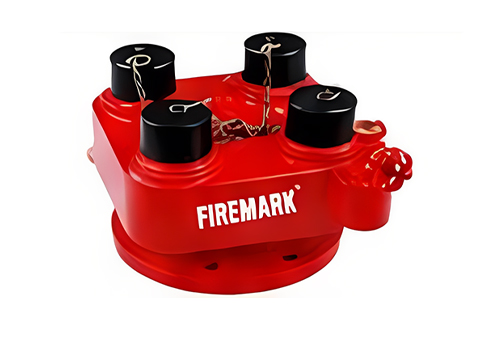

4 WAY INLET FBC BREECHING
| MODEL | 2 WAY INLET FBC BREECHING |
| SIZE | GUN METAL/S.S & CAST IRON BODY |
| TESTING | HYDRAULIC TEST: 21 KGF/CM2 |
