Thermoplastic Hose Pipe (Textile Reinforced) Foe Water
IS: 12585 - Type - 1 W.P. 6 kgf/cm2
IS: 12585 - Type - 2 W.P. 10 kgf/cm2
Available in: 20 mm dia & 25 mm dia
Enquiry

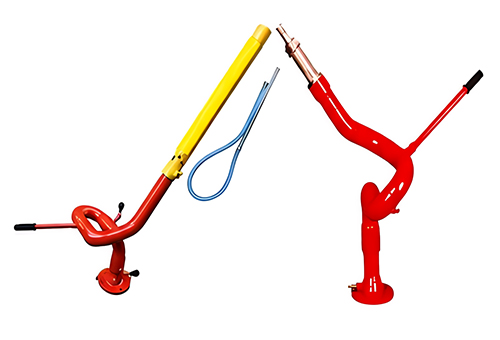

Stand Post Type Water And Foam Monitor
| DESIGN & CONSTRUCTION | AS PER IS: 8442 |
| MATERIAL | SEAMLESS MILD STEEL TUBES |
| SIZE OF MONITOR | 63 MM |
| SIZE OF INLET FLANGE | 80 MM |
| CONSTRUCTION | WELDED FROM M.S. SEAMLESS PIPES, BENDS, ETC. |
| DISCHARGE CAPACITY | 1750 LPM |
| HORIZONTAL THROW | 50-55 METERS |
| ROTATION | 360° |
| ELEVATION | 58° TO 30° |
| JOINT | SWIVEL TYPE (GUN-METAL) |
| JET SPRAY NOZZLE | GUN METAL OR ALUMINIUM |
| OPERATIVE PRESSURE | 0.7 N/mm2 AT NOZZLE END |
| LEAKAGE PRESSURE | TO WITHSTAND A PRESSURE OF 2.3 N/mm2 |
