Feature
- Addressable fire alarm control panel
- RS-485, Ethernet, Serial Port, USB
- LPCB approved to EN 54-2 and EN 54-4.
- 7-inch touch screen and touch-sensitive buttons is used for HMI and 18 LED for status indication.
- Support Class A loop wiring mode and Class B star wiring mode.
- Maximum 4 detection loops, each loop has 256 addressable devices in Class A mode and 512 addressable devices in Class B mode.
- 36 Zone indication for Fire, Fault, Disable.
- GL-P256 has passed the optional requirement of EN54-4 that it can control FPE equipment, and detecting fault status from FPE. (Fire protection equipment such like: Water system, ventilation system, fire extinguish system etc.,)
- 2 original programmable sounder output terminals for conventional sounder.
- 6 original programmable output for FPE device.
- 24V/3A Auxiliary power supply output for remote device.
- An additional NET card can enable networking through CAN bus.
- True peer-to-peer (P2P) networking, it can support up to 128 FACPs (GL-P256) being interconnected.
- It is possible to preview the status of the entire fire alarm system through any FACP within this network.
Description

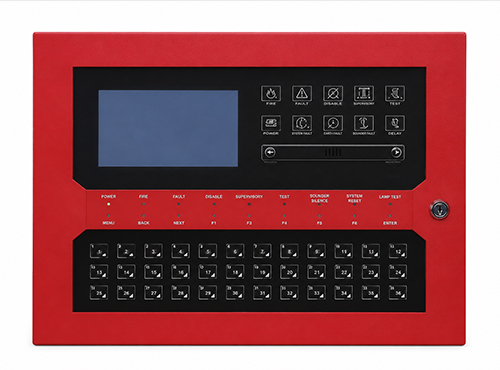

The GL-P256 is an expandable fire alarm control panel. It can expand the loop addressable point capacity and fire alarm system networking capabilities through loop cards and network cards. The touch-sensitive LCD screen and icon-based buttons conform to the mainstream system operation process, which is very clear and intuitive, and easy to use.
The standard GL-P256 fire alarm control comes with one loop (expandable to four), two programmable sounder outputs rated at 1A each, and three programmable Pro-I/O outputs that can control FPE devices. It can achieve Input/Output (I/O) circuits after connecting to the terminal box.
The maximum communication distance for each loop can reach up to 1,500 meters.
Technical Data
| AC Main Power |
1.7A @ 200~240VAC, 50/60Hz 3.0A @ 100~120VAC, 50/60Hz |
| Standby Current | ≤1.5A Max. EN54-4 |
| Alarm Current | ≤2.5A Max. EN54-4 |
| Battery | The enclosure of panel can accommodate two standard-sized 12V/7AH batteries connected in series. |
| Temperature Range | -10°C ~ 50°C |
| Humidity | ≤95%RH (40±2°C) No condensation |
| Loop |
Default 1 loop with 512 points Maximum 4 loops with 2048 points |
| Sounder Output | 2 Programmable conventional sounder output, Rated @ 1 amp each |
| Pro I/O Output | Needs GL-6159 Terminal box for Programmable Remote I/O control. |
| Alarm Output Relay | 1A at 30VDC |
| Fault Output Relay | 1A at 30VDC |
| Network | CANbus, Baudrate @10k |
| Dimension | 480*355*120mm |
| Weight | 7.5kg (Without batteries) |
Fire Detection Devices with GL-P256 FACP
| GL-OP101 Addressable Smoke Detector | GLYPTIC Addressable Photoelectric Smoke Detector, combined with four sensitive modes. It can be managed by FACP. LPCB approved to EN54-7. |
| GL-HI101 Addressable Heat Detector | GLYPTIC Addressable Heat Detector, it incorporates A1R and A2 two detection modes. It can be managed by FACP, where R indicates rate-of-rise characteristic. A temperature alarm will be triggered when the rate of temperature increase reaches a certain parameter. LPCB approved to EN54-5. |
| GL-OH101 Addressable Multi-sensor Detector | GLYPTIC Addressable Multi-sensor Detector, it features both temperature and smoke detection, but only occupies one loop address point. The heat detector comes with two modes, A1R and A2, which can be switched. LPCB approved to EN54-5 and EN54-7. |
| GL-MCP Addressable Manual Call Point | GLYPTIC Addressable MCP, pressing white front panel can manually trigger the fire alarm. It has an IP43 level of protection and uses a special key to reset. LPCB approved to EN54-11. |
Notification devices with GL-P256 FACP
| Device | Description |
| GL-SH256 Addressable Sounder Beacon | GLYPTIC Addressable Sounder that combines with high light LED. It has 16 kinds of tones that can be switched on the fire alarm control panel. LPCB approved to EN54-3 |
| FA-410L Conventional Sounder Strobe | GLYPTIC Conventional Sounder that combined with high light LED. |
| GL-FT Addressable Fire Repeater | GLYPTIC Addressable Fire repeater, that equipped with 4.3 inches touch screen for graphic display. It can be applied in stairwells or at room entrances to remotely display information from all fire alarm control panel but only occupy one Address point in loop. |
Modules with GL-P256 FACP
| Device | Description |
| GL-MM-L Addressable Monitor Interface | Addressable input module, LPCB approved to EN54-18 |
| GL-CM-L Addressable Control Interface | Addressable input and output module, with 30VDC/1A capacity relay LPCB approved to EN54-18 |
| GL-IM-L Addressable Isolator Interface | Isolator modules for short circuit protection in detection loop. Every 32 front-end devices are connected to one isolate module, It does not occupy a loop address, LPCB approved to EN54-17 |
The GL-P256 Fire alarm control panel can connect with up to 2048 address points in any combination.
Recommended to use LPCB certified 1.5mm² twisted pair cable for detection loop. The bus length of each
detection loop should not exceed 1500 meters.
| Device | Description |
| GL-P256 Loop Card (GL-DLC2) |
Loop expansion card, a single loop card can connect up to 256 devices (Class A loop wiring), and a dual loop can connect up to 512 devices (Class B tree wiring) (with LPCB certification from the UK and CE certification from the EU). |
| GL-NC256 Network Card |
The network card is used to establish peer-to-peer networking between digital fire alarm control panels, capable of accommodating up to 128 FACP. |
| GL-DPU-C | Digital programmer. Programming addresses and other functional settings for front-end devices. |
EN54 Information:
GL-P256 Digital Fire Alarm Panel complies with the requirements of EN 54-2 and EN 54-4. In addition to the basic requirements of these standards, the panel conforms to the following optional requirements.
| Option | EN 54-2 Clause | |
| Indication | Fault monitoring of fire protection equipment | 7.10.4 |
| Alarm Counter | 7.13 | |
| Control | Delays to outputs | 7.11 |
| Dependencies on more than one alarm signal (Type A) | 7.12.1 | |
| Dependencies on more than one alarm signal (Type B) | 7.12.2 | |
| Dependencies on more than one alarm signal (Type C) | 7.12.3 | |
| Disablement of each addressable points | 9.5 | |
| Outputs | Output to Fire Alarm Devices | 7.8 |
| Outputs to Fire Protection Equipment (Output Type A) | 7.10.1 | |
| Outputs to Fire Protection Equipment (Output Type B) | 7.10.2 | |
| Outputs to Fire Protection Equipment (Output Type C) | 7.10.3 | |
